7,0 palcová standardní teplota IPS TFT modul

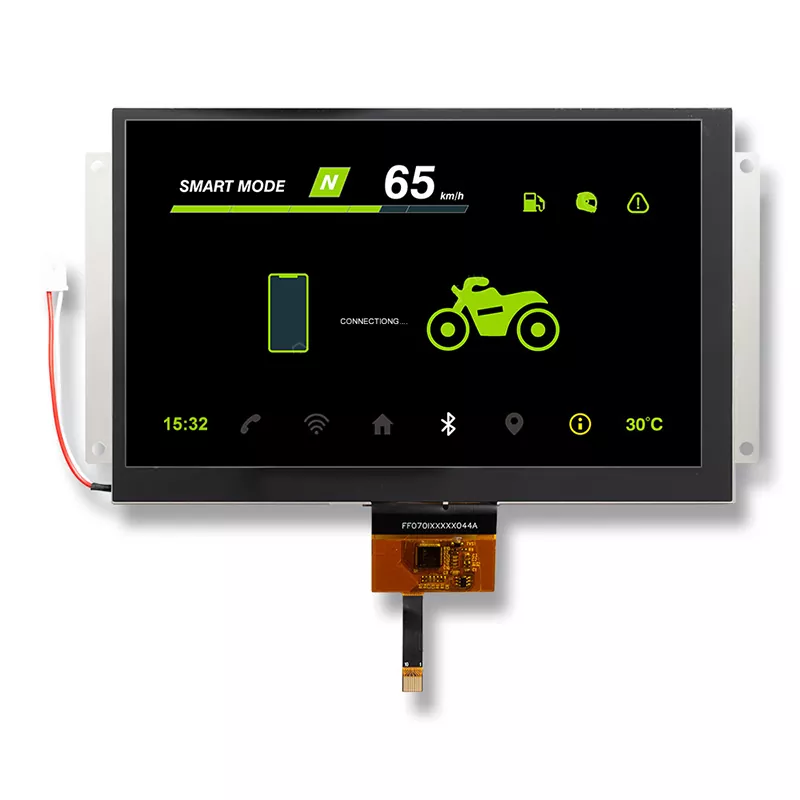

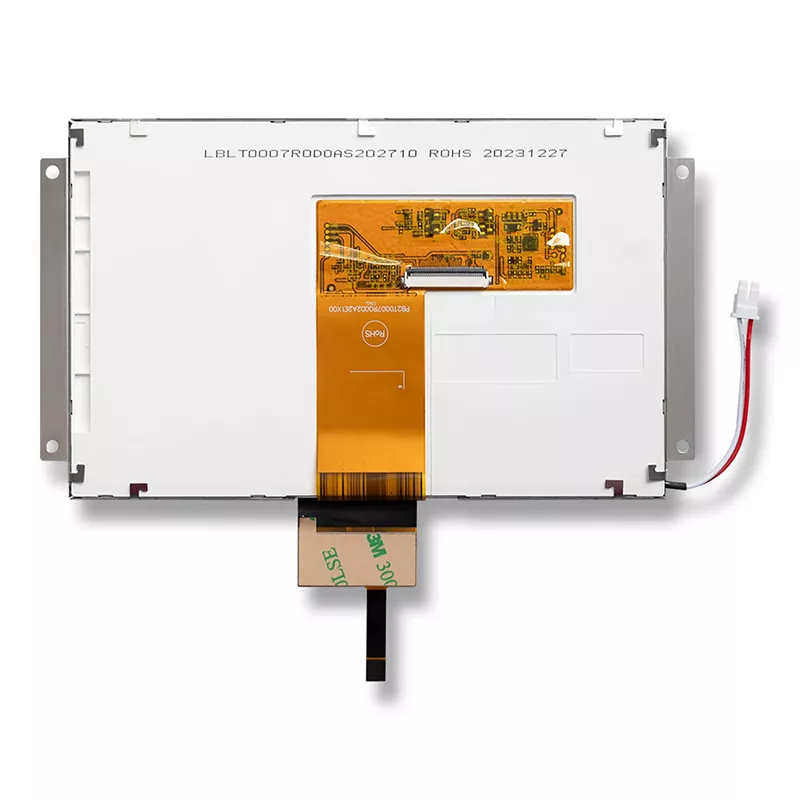

7 inch TFT Module as a common size, what are the competitive advantages of the Victronix 7.0 inch Standard Wide Temperature IPS TFT Module? At first, it comprises a TFT-LCD panel, driver IC, FPC, and a backlight unit. It has a 7 inch active area (152.40×91.44 mm), 800(H)×480(V) pixel resolution, and 16.7M color depth to provide users with a clear display. Secondly, it integrates an LED backlight unit with a typical brightness of 1000 cd/m², a rated life of 50,000 hours (at 50% initial brightness), and supports PWM dimming for flexible brightness control. Besides, not only does it have an LVDS input that supports both 6-bit and 8-bit modes, with flexible scan direction control, but has a high contrast ratio of 1000:1 wide viewing angles (80° typical in all directions) and a fast 25ms response time. In addition, the Victronix 7.0 inch Standard Wide Temperature IPS TFT Module operates in extreme temperatures (-30°C to +85°C) and withstands harsh storage conditions (-35°C to +85°C).

This Victronix 7inch TFT Module is suitable for Industrial HMIs, portable devices, test equipment, and outdoor applications requiring dependable performance under challenging conditions.

General Specifications LCD Parameter

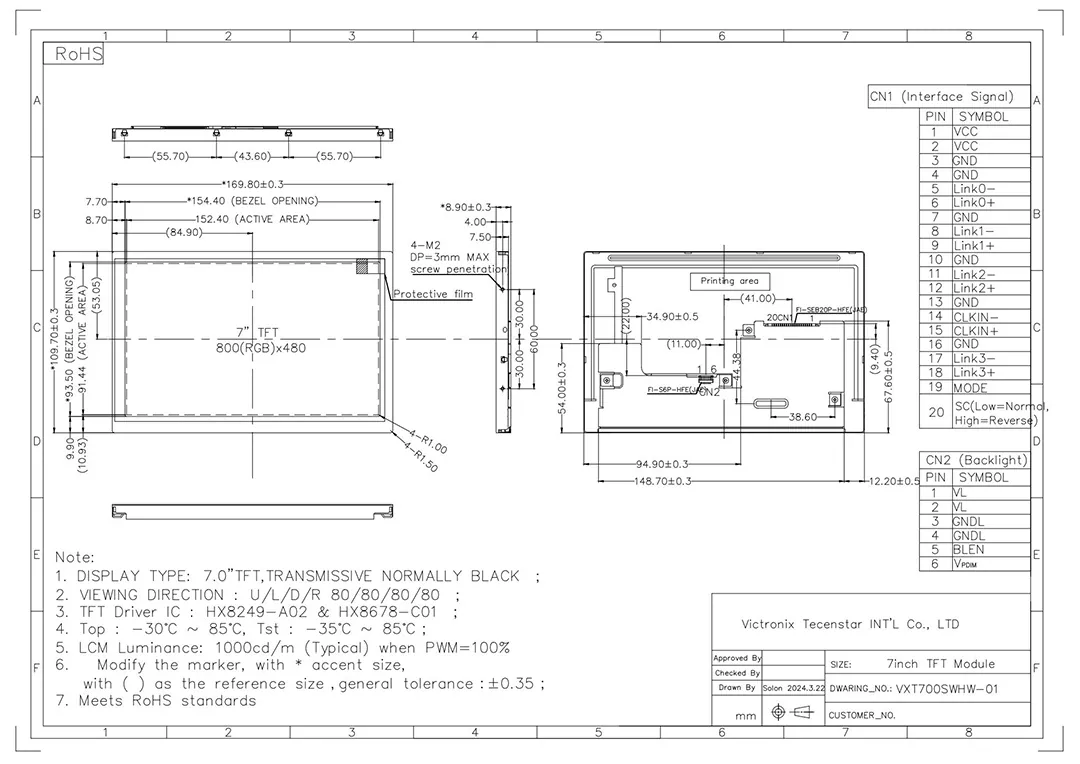

Outline Drawing
